Understanding the Different Types of Rotary Drill Bits and Their Applications

Rotary drilling is a key technique in many industries, from construction to oil and gas exploration. The tool that makes rotary drilling possible is the rotary drill bit. These bits are essential in creating precise holes in various materials, whether drilling into soil, rock, or concrete. This article will explore the different types of rotary drill bits available, their uses, and how to choose the right one for your project.

What is a Rotary Drill Bit?

A rotary drill bit is a cutting tool used in drilling operations designed to rotate while boring into various surfaces. The design of the bit and the materials it’s made from allow it to efficiently cut through hard surfaces, breaking up the material as it rotates.

Rotary drill bits are primarily used in oil and gas exploration, mining, and construction. They come in various shapes and sizes, each suited to a specific application or type of material. Understanding the different types can help you choose the right one for your needs.

Types of Rotary Drill Bits

Several types of rotary drill bits are designed to meet the specific drilling demands in various environments. Here’s a breakdown of the most common types:

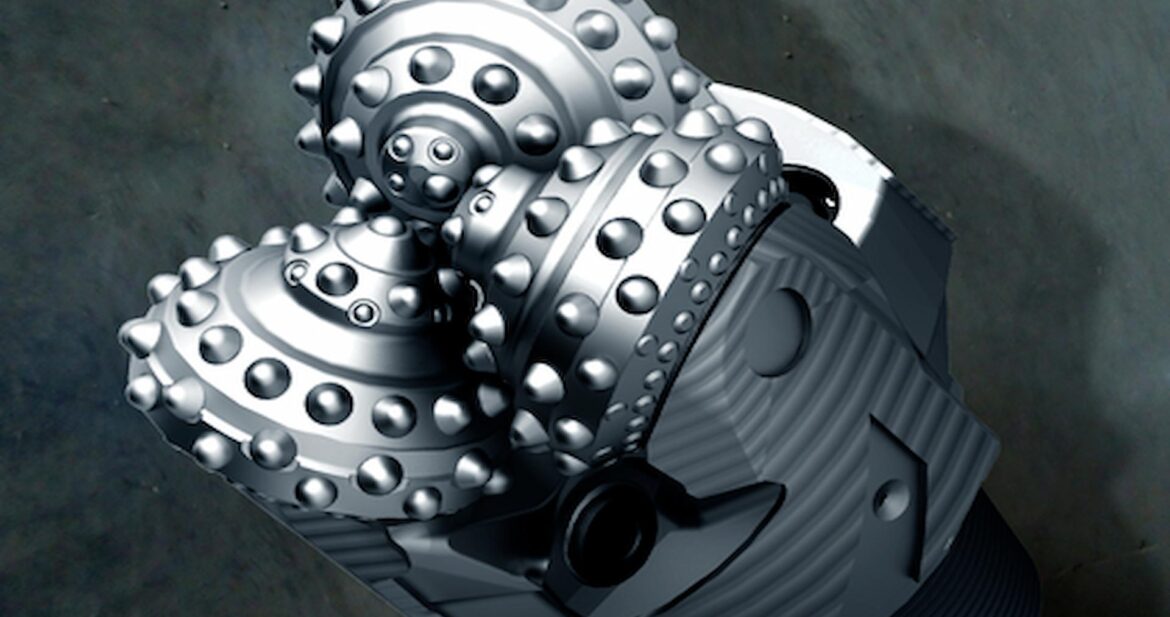

Roller Cone Bits

Roller cones and tricone bits are the most widely used rotary drill bits. These bits have three rotating cones with sharp, durable teeth that crush and grind through rock. The movement of the cones ensures efficient cutting, making them ideal for complex rock formations.

• Applications: Roller cone bits are typically used in the oil and gas industry, as well as in mining and water well drilling.
• Advantages: They are highly durable and versatile, capable of drilling through various formations.
• Limitations: They are less effective in soft, loose materials and can wear out faster on smoother surfaces.

PDC Bits (Polycrystalline Diamond Compact Bits)

PDC bits are made with synthetic diamond layers, making them one of the hardest and most durable drill bits available. These bits use a combination of diamond blades and a carbide substrate to cut through tough rock formations efficiently.

• Applications: PDC bits are commonly used in deep drilling for oil, gas, and geothermal wells, as well as mining.
• Advantages: Extremely hard and wear-resistant, making them ideal for drilling through hard rock formations.
• Limitations: PDC bits are more expensive and can be prone to damage if used in formations with significant amounts of sand or gravel.

Diamond Bits

Diamond drill bits are often used in precision drilling applications. These bits are embedded with industrial-grade diamonds and are known for their ability to drill through hard materials like granite, basalt, or concrete.

• Applications: These bits are frequently used for drilling core samples, geological surveys, and in the construction industry for drilling into hard materials.
• Advantages: Excellent for drilling through extremely hard or abrasive materials.
• Limitations: These are unsuitable for soft materials and are generally more expensive than other drill bits.

Carbide-Tipped Bits

Carbide-tipped drill bits are made with steel bodies and carbide inserts at the cutting edge. These bits are a popular choice for general-purpose drilling and are particularly useful for drilling through hard rock and other tough surfaces.

• Applications: Commonly used in construction and road construction, especially for drilling in materials like concrete or asphalt.
• Advantages: Affordable and effective for a variety of drilling tasks.
• Limitations: They are less durable than PDC or diamond bits and can wear down faster in hard rock.

Drag Bits

Drag bits are characterised by flat blades or a series of cutters that drag along the surface being drilled. These bits are typically used in softer formations and are often employed in shallow drilling applications.

• Applications: Drag bits are used in water well drilling, construction, and geothermal drilling operations.
• Advantages: Cost-effective and efficient for drilling through soft to medium-hard formations.
• Limitations: Not suitable for hard rock or formations with high abrasive content.

How to Choose the Right Rotary Drill Bit

Choosing the right rotary drill bit depends on several factors, including the type of material you’ll be drilling, the depth of the well or hole, and the type of drilling machine you’re using. Here are some things to consider when selecting a drill bit:

• Material Type: Identify the hardness and abrasiveness of the material you’ll be drilling through. Complex materials like rock or concrete require more durable bits, such as PDC or diamond.
• Drilling Environment: Consider whether you are drilling in a wet or dry environment. Some bits are designed to work better in certain conditions, such as underwater drilling or high-temperature environments.
• Cost Considerations: High-performance bits like PDC or diamond come at a premium price. If cost is a concern, carbide-tipped or roller cone bits may balance cost and performance well.
• Depth of the Hole: More durable bits like PDC or roller cone bits are ideal for deeper holes due to their longevity and performance under high pressure.

Applications of Rotary Drill Bits in Various Industries

Rotary drill bits are used in many industries, each with unique demands. Here’s how rotary drill bits are applied across different sectors:

• Oil and Gas: In the oil and gas industry, rotary drill bits like PDC and roller cone bits are essential for reaching deep reserves. They are designed to handle the intense pressure and high temperatures of deep-earth drilling.
• Mining: Mining operations use rotary drill bits for everything from exploration to extraction. Diamond bits and carbide-tipped bits are particularly useful in hard rock mining.
• Construction: For construction projects, such as drilling foundations or creating tunnels, drag bits and carbide-tipped bits are commonly used to drill through softer rock or concrete.
• Water Well Drilling: Water well drilling often involves softer soils and formations, making drag bits or roller cone bits the ideal choice for this type of work.

Conclusion

Understanding the different types of rotary drill bits and their applications is crucial for selecting the right tool for your project. Whether you’re drilling into soft soil or hard rock, choosing the correct bit can make a significant difference in the efficiency and success of your operation. Remember the material you’re drilling, the depth of your project, and the environmental conditions to ensure you select the best bit for the job.

By understanding the functions and capabilities of each type of rotary drill bit, you’ll be better equipped to make informed decisions and ensure that your drilling projects are completed effectively and efficiently.

This article has comprehensively examined the various types of rotary drill bits and their applications, helping you choose the right one for your specific needs. Whether in the oil and gas industry, construction, or mining, understanding your options will lead to more successful drilling outcomes.
